Size | 20 mm to 90 mm |
Standard | EN 50262 : 1999 |
Application | Outdoor or Indoor for use with all types of Unarmoured Cable |
Function | Provide Seal on Outer Sheath of the Unarmoured Cable |
Material | Brass BS 2874 CZ121 Pb3 |
Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temp. | Standard seals -200 C to +800 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Technical Data:
Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
---|---|---|---|---|---|
MM | INCH | MAX 'A' | MAX 'B' | ||
A2 20S | 20 | 3/4 | 15 | 10.80 | 8.80 |
A2 20L | 20 | 3/4 | 15 | 14.70 | 11.40 |
A2 25S | 25 | 1 | 15 | 16.00 | 13.00 |
A2 25L | 25 | 1 | 15 | 20.30 | 17.30 |
A2 32S | 32 | 1.1/4 | 15 | 23.00 | 20.00 |
A2 32L | 32 | 1.1/4 | 15 | 26.20 | 24.20 |
A2 40S | 40 | 1.1/2 | 20 | 29.00 | 26.00 |
A2 40L | 40 | 1.1/2 | 20 | 34.00 | 29.50 |
A2 50S | 50 | 2 | 20 | 41.00 | 33.00 |
A2 50L | 50 | 2 | 20 | 45.00 | 38.00 |
A2 63S | 63 | 2.1/2 | 20 | 51.50 | 44.00 |
A2 63L | 63 | 2.2/2 | 20 | 56..50 | 50.00 |
A2 75S | 75 | 3 | 20 | 63.20 | 56.00 |
A2 75L | 75 | 3 | 20 | 68.50 | 62.00 |
Also available in Kit Packaging and also as per the specification

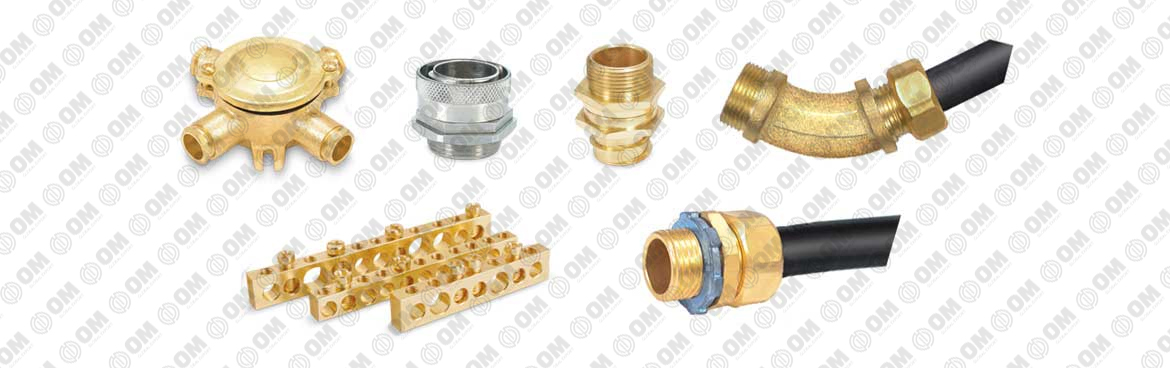

Brass Electrical Fittings & Conduit Fittings
We make the customized products as per the specifications and needs of our customers.
Some of the other items that we make and have developed for our Customer's include the following
- Special types of Glands and Accessories as per the Drawings and Samples
- Junction Box
- Neutral Links / Terminal Blocks / Bus Bars
- Conduit Fittings
- Gun Metal Fittings for Lightning and Earthing Protections
- Brass Fittings for Lightning and Earthing Protections
- We undertake the development and prototype development work of companies to partner them in their research and development
BW 2 PT Cable Glands
Size | 20 mm to 90 mm |
Standard | BS 6121 |
Application | Dry Indoor, for use with all types of SWA Cable |
Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
Material | Brass BS 2874 CZ121 Pb3 |
Optional Threads | METRIC, NPT, BSP, PG or as specified |
Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temp. | -800 C to +3000 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Technical Data:
Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
---|---|---|---|---|---|
MM | INCH | MAX 'A' | MAX 'B' | ||
A2 20S | 20 | 3/4 | 15 | 10.80 | 8.80 |
A2 20L | 20 | 3/4 | 15 | 14.70 | 11.40 |
A2 25S | 25 | 1 | 15 | 16.00 | 13.00 |
A2 25L | 25 | 1 | 15 | 20.30 | 17.30 |
A2 32S | 32 | 1.1/4 | 15 | 23.00 | 20.00 |
A2 32L | 32 | 1.1/4 | 15 | 26.20 | 24.20 |
A2 40S | 40 | 1.1/2 | 20 | 29.00 | 26.00 |
A2 40L | 40 | 1.1/2 | 20 | 34.00 | 29.50 |
A2 50S | 50 | 2 | 20 | 41.00 | 33.00 |
A2 50L | 50 | 2 | 20 | 45.00 | 38.00 |
A2 63S | 63 | 2.1/2 | 20 | 51.50 | 44.00 |
A2 63L | 63 | 2.2/2 | 20 | 56..50 | 50.00 |
A2 75S | 75 | 3 | 20 | 63.20 | 56.00 |
A2 75L | 75 | 3 | 20 | 68.50 | 62.00 |
Also available in Kit Packaging and also as per the specification
BW 2 PT Cable Glands
Size | 20 mm to 90 mm S & L |
Standard | BS 6121 |
Application | Dry Indoor, for use with all types of SWA Cable |
Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
Material | Brass BS 2874 CZ121 Pb3 |
Optional Threads | METRIC, NPT, BSP, PG or as specified |
Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temp. | -800 C to +3000 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Also available in Kit Packaging and also as per the specification
Technical Data:
Size | Thread | Length | A | B | A/F | A/C |
---|---|---|---|---|---|---|
20S | M20 | 10.00 | 13.00 | 18.00 | 23.50 | 26.00 |
20L | M20 | 10.00 | 14.00 | 21.00 | 25.00 | 28.00 |
25S | M25 | 10.00 | 18.00 | 24.00 | 31.00 | 35.50 |
25L | M25 | 10.00 | 20.50 | 27.00 | 33.00 | 37.00 |
32S | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
32L | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
40S | M40 | 13.00 | 31.50 | 39.50 | 45.50 | 50.50 |
40L | M40 | 13.00 | 33.00 | 41.50 | 49.00 | 55.00 |
50S | M50 | 13.00 | 39.50 | 48.50 | 56.50 | 63.50 |
50L | M50 | 13.00 | 44.50 | 54.50 | 62.50 | 70.50 |
63S | M63 | 14.00 | 50.20 | 59.20 | 68.80 | 77.00 |
63L | M63 | 13.50 | 56.50 | 65.50 | 76.00 | 86.00 |
75S | M75 | 15.00 | 63.50 | 72.00 | 84.00 | 94.50 |
75L | M75 | 15.00 | 69.50 | 78.50 | 90.00 | 101.00 |
90S | M90 | 20.00 | 76.00 | 85.00 | 100.00 | 111.20 |
90L | M90 | 18.00 | 78.40 | 90.50 | 103.00 | 115.00 |

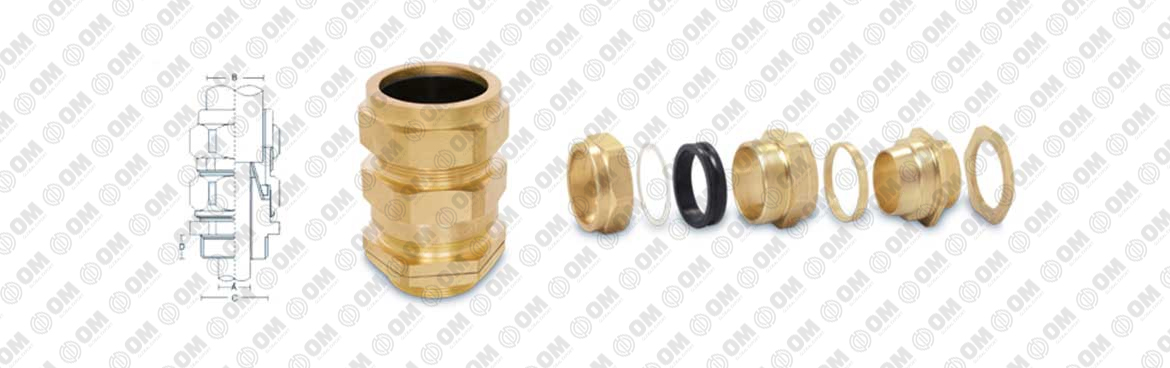

CW Type Cable Glands
Size | 20 mm to 90 mm S & L |
Standard | EN 50262 : 1999 |
Application | For indoor or outdoor use with all types of SWA Cable |
Function | Provide for Environmental Seal in the Cable Outer Sheath,. Also provide mechanical cable retention & electrical continuity. |
Material | Brass BS 2874 CZ121 Pb3 |
Optional Threads | METRIC, NPT, BSP, PG or as specified |
Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temp. | Standard seals -200 to +800 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, REducers, Adaptors, etc. as per the requirement |
Technical Data:
Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
---|---|---|---|---|---|
MM | INCH | MAX 'A' | MAX 'B' | ||
A2 20S | 20 | 3/4 | 15 | 10.80 | 8.80 |
A2 20L | 20 | 3/4 | 15 | 14.70 | 11.40 |
A2 25S | 25 | 1 | 15 | 16.00 | 13.00 |
A2 25L | 25 | 1 | 15 | 20.30 | 17.30 |
A2 32S | 32 | 1.1/4 | 15 | 23.00 | 20.00 |
A2 32L | 32 | 1.1/4 | 15 | 26.20 | 24.20 |
A2 40S | 40 | 1.1/2 | 20 | 29.00 | 26.00 |
A2 40L | 40 | 1.1/2 | 20 | 34.00 | 29.50 |
A2 50S | 50 | 2 | 20 | 41.00 | 33.00 |
A2 50L | 50 | 2 | 20 | 45.00 | 38.00 |
A2 63S | 63 | 2.1/2 | 20 | 51.50 | 44.00 |
A2 63L | 63 | 2.2/2 | 20 | 56..50 | 50.00 |
A2 75S | 75 | 3 | 20 | 63.20 | 56.00 |
A2 75L | 75 | 3 | 20 | 68.50 | 62.00 |
CW NPT Type Cable Glands
Size | 20 mm to 90 mm S & L |
Standard | EN 50262 : 1999 |
Application | For indoor or outdoor use with all types of SWA Cable |
Function | Provide for Environmental Seal in the Cable Outer Sheath. Also provide mechanical cable retention & electrical continuity. |
Material | Brass BS 2874 CZ121 Pb3 |
Optional Threads | METRIC, NPT, BSP, PG or as specified |
Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temp. | Standard seals -200 to +800 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Technical Data:
Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
---|---|---|---|---|---|
MM | THREAD NPT | MAX 'A' | MAX 'B' | ||
CWNPT 20S | 20 | 1/2" | 10 | 11.80 | 17.80 |
CWNPT 20L | 20 | 1/2" | 10 | 14.00 | 20.80 |
CWNPT 25S | 25 | 3/4" | 10 | 18.00 | 24.00 |
CWNPT 25L | 25 | 3/4" | 10 | 20.30 | 27.40 |
CWNPT 32S | 32 | 1" | 10 | 24.50 | 31.00 |
CWNPT 32L | 32 | 1" | 10 | 26.50 | 34.20 |
CWNPT 40S | 40 | 1.1/4" | 13 | 30.40 | 38.50 |
CWNPT 40L | 40 | 1.1/4" | 13 | 33.20 | 41.00 |
CWNPT 50S | 50 | 1.1/2" | 13 | 40.00 | 47.00 |
CWNPT 50L | 50 | 1.1/2" | 13 | 44.00 | 53.50 |
CWNPT 63S | 63 | 2" | 14 | 50.00 | 59.00 |
CWNPT 63L | 63 | 2" | 13.50 | 56.00 | 66.00 |
CWNPT 75S | 75 | 2.1/2" | 15 | 63.50 | 73.00 |
CWNPT 75L | 75 | 2.1/2" | 15 | 69.00 | 79.00 |
Also available in Kit Packaging and also as per the specification

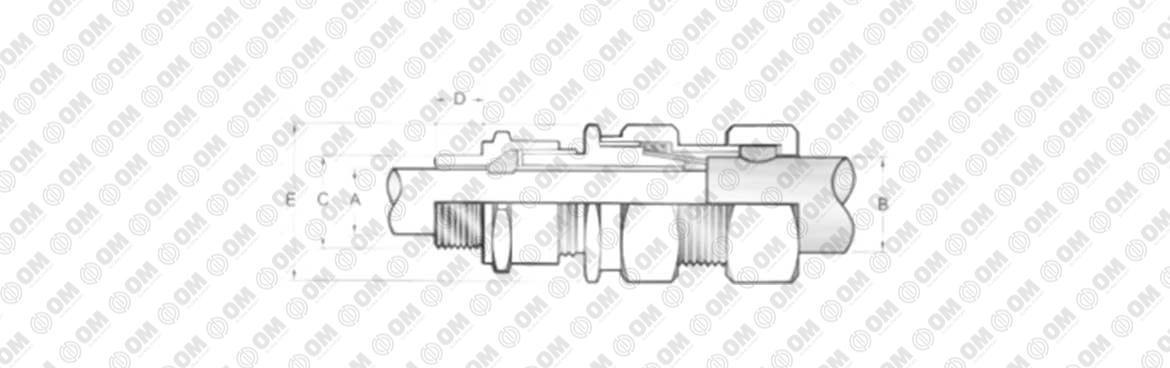

E1FW Type Cable Glands
Standard | EN 50262 : 1999 |
Application | This type of Cable Glands are suitable for indoor and outdoor use, appropriate for single wire armoured, plastic or rubber sheathed cable. Provides grip to the cable with outer and inner seals. Used popularly in most cliamatic conditions. Weatherproof and waterproof. |
Ingress Protection | IP 66 |
Material | Brass |
Finish | Plain Brass or Nickel Plated |
Technical Data:
Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
---|---|---|---|---|---|
MM | INCH | MAX 'A' | MAX 'B' | ||
A2 20S | 20 | 3/4 | 15 | 10.80 | 8.80 |
A2 20L | 20 | 3/4 | 15 | 14.70 | 11.40 |
A2 25S | 25 | 1 | 15 | 16.00 | 13.00 |
A2 25L | 25 | 1 | 15 | 20.30 | 17.30 |
A2 32S | 32 | 1.1/4 | 15 | 23.00 | 20.00 |
A2 32L | 32 | 1.1/4 | 15 | 26.20 | 24.20 |
A2 40S | 40 | 1.1/2 | 20 | 29.00 | 26.00 |
A2 40L | 40 | 1.1/2 | 20 | 34.00 | 29.50 |
A2 50S | 50 | 2 | 20 | 41.00 | 33.00 |
A2 50L | 50 | 2 | 20 | 45.00 | 38.00 |
A2 63S | 63 | 2.1/2 | 20 | 51.50 | 44.00 |
A2 63L | 63 | 2.2/2 | 20 | 56..50 | 50.00 |
A2 75S | 75 | 3 | 20 | 63.20 | 56.00 |
A2 75L | 75 | 3 | 20 | 68.50 | 62.00 |

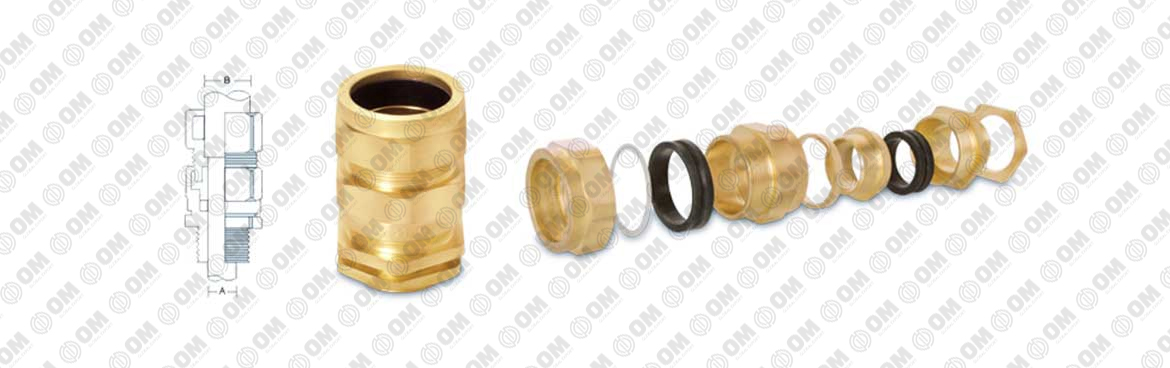

E1W Type Cable Glands
Size | 20 mm to 90 mm S & L |
Standard | EN 50262 : 1999 |
Application | For indoor or outdoor use with all types of SWA Cable |
Function | Provide for Environmental Seal in the Cable Outer sheath. Also, provide mechanical cable retention & electrical continuity |
Material | Brass BS 2874 CZ121 Pb3 |
Optional Threads | METRIC, NPT, BSP, PG or as specified |
Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temp. | Standard seals -200 C to +800 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Technical Data:
Size | Thread | Length | A | B | A/F | A/C |
---|---|---|---|---|---|---|
20S | M20 | 15.00 | 12.00 | 16.00 | 22.20 | 24.20 |
20L | M20 | 15.00 | 14.00 | 20.50 | 27.00 | 29.50 |
20/16 | M20 | 15.00 | 9.00 | 14.00 | 22.20 | 24.20 |
25S | M25 | 15.00 | 18.50 | 24.50 | 33.50 | 37.50 |
25L | M25 | 15.00 | 20.50 | 27.50 | 36.00 | 40.00 |
32S | M32 | 10.40 | 24.30 | 34.00 | 43.00 | 48.50 |
32L | M32 | 15.00 | 26.27 | 34.20 | 43.50 | 48.50 |
40S | M40 | 15.00 | 29.50 | 41.50 | 52.00 | 58.00 |
40L | M40 | 15.00 | 33.00 | 41.50 | 52.00 | 58.00 |
50S | M50 | 15.00 | 38.50 | 47.00 | 59.00 | 65.50 |
50L | M50 | 15.00 | 44.30 | 53.20 | 64.20 | 71.50 |
63S | M63 | 20.00 | 50.20 | 62.50 | 73.50 | 81.50 |
63L | M63 | 20.00 | 56.20 | 65.50 | 79.50 | 89.00 |
75S | M75 | 20.00 | 62.00 | 74.00 | 87.00 | 97.00 |
75L | M75 | 20.00 | 68.00 | 78.20 | 97.00 | 108.00 |
90L | M90 | 18.50 | 80.00 | 91.00 | 103.50 | 114.50 |
Also available in Kit Packaging and also as per the specification.

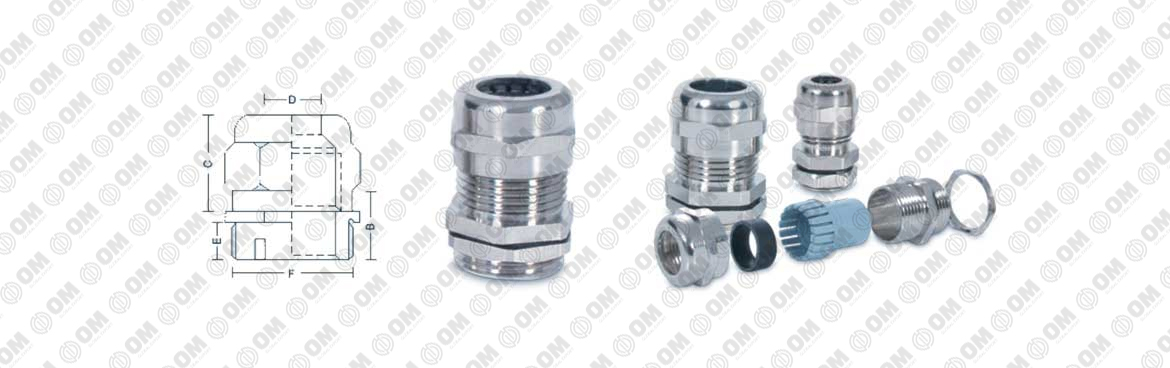

IP 68 Cable Glands
Additional Features
With Vibration Lock and Strain Relief Protection Class IP 68 - 5 Bar
Temperature Range : -3000 to +9000 C
Technical Data
Size | Clamping Range | Thread Length (in mm) |
PG-7 | 2-6.50 | 6.00 |
PG-9 | 3-8.00 | 6.00 |
PG-11 | 4-10.00 | 6.00 |
PG-13.5 | 5-12.00 | 8.00 |
PG-16 | 8-14.00 | 8.00 |
PG-21 | 11-18.00 | 8.00 |
PG-29 | 16-25.00 | 9.00 |
PG-36 | 20-30.00 | 9.00 |
PG-42 | 28-38.00 | 12.00 |
PG-48 | 34-44.00 | 12.00 |
M12 | 2-6.50 | 6.00 |
M16 | 3-8.00 | 6.00 |
M20 | 5-12.00 | 8.00 |
M25 | 11-18.00 | 8.00 |
M32 | 12-21.00 | 8.00 |
M40 | 18-27.00 | 9.00 |
M50 | 27-33.00 | 9.00 |
M63 | 34-48.00 | 12.00 |
Cable Glands are suitable for connections provides with flexible cables in
- Weather Proof Enclosures
- Control Panels
- Limit Switches
- Multi Pin Connectors
- Controlling & Liquid Measuring Instrument
- Machineries
- Medical Equipments
- Electric Motors
We manufacture other types of Accessories also and according to specifications, drawing and samples. Other Accessories like Cable Ties, Reducers, Enlargers, Adaptors, Converters, Stopping Plugs.

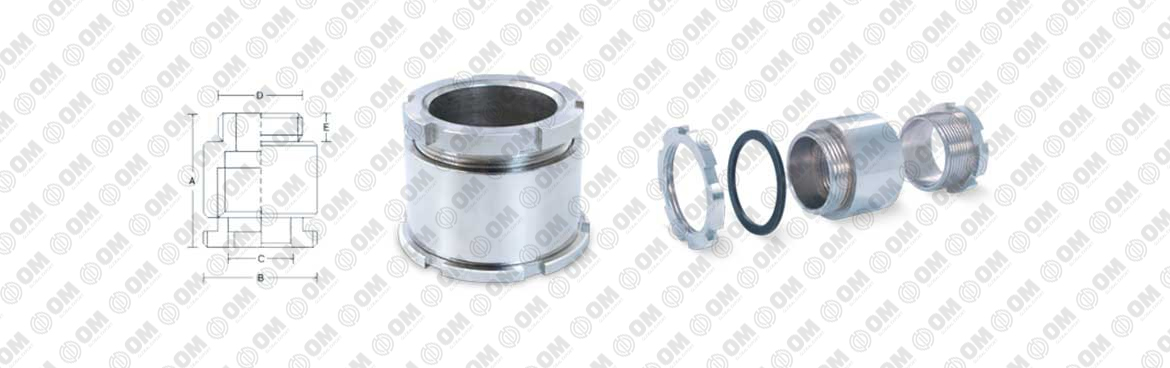

Marine & JIS Type Cable Glands
Size | 10 mm to 90 mm |
Application | Outdoor or Indoor for use with all types of braided or unarmoured Marine electrical cable fittings |
Ingress Protection | IP54 IP66 |
Optional Thread | ISO Metric, NPT, NPS, BSP, BSPT, PG |
Finish | Chrome Finish, Brass Finish, Nickel Finish or as specified |
Material | Brass BS 2874 CZ121 Pb3 |
Sizes | Metric from 10 mm to 60 mm in JIS, PG 7 to PG 48 in DIN from M 16 to M 90 in BS |
Technical Data
Size | A | B | C | D | E | F | G | H | I |
10 | 45.00 | 21.50 | 10.00 | 3/8" BSP | 11.00 | 5.00 | 28.00 | 22.00 | 4.00 |
15 | 50.00 | 27.50 | 15.00 | 1/2" BSP | 11.00 | 5.00 | 31.20 | 26.20 | 4.00 |
20 | 53.00 | 33.50 | 20.00 | 3/4" BSP | 10.00 | 5.00 | 37.00 | 32.00 | 6.00 |
25 | 60.00 | 41.50 | 25.00 | 1" BSP | 11.00 | 6.00 | 46.00 | 40.00 | 6.00 |
30 | 65.00 | 49.50 | 30.00 | 1.1/4" BSP | 12.00 | 6.00 | 56.00 | 48.00 | 8.00 |
35 | 70.00 | 55.50 | 40.00 | 1.1/2" BSP | 12.00 | 6.00 | 63.000 | 55.00 | 8.00 |
40 | 70.00 | 55.50 | 40.00 | 1.1/2" BSP | 12.00 | 6.00 | 63.00 | 55.00 | 8.00 |
45 | 85.00 | 69.50 | 50.00 | 2" BSP | 12.00 | 6.00 | 76.00 | 67.00 | 10.00 |
50 | 85.00 | 69.50 | 50.00 | 2" BSP | 12.00 | 6.00 | 76.00 | 67.00 | 10.00 |
55 | 87.00 | 85.50 | 60.00 | 2.1/2" BSP | 12.00 | 6.00 | 95.00 | 86.00 | 10.00 |
60 | 88.00 | 85.50 | 60.00 | 2.1/2" BSP | 12.00 | 6.00 | 95.00 | 86.00 | 10.00 |
65 | 100.00 | 99.50 | 70.00 | 3" BSP | 14.00 | 6.00 | 112.00 | 100.00 | 12.00 |
70 | 110.00 | 99.50 | 70.00 | 3" BSP | 14.00 | 6.00 | 112.00 | 100.00 | 12.00 |

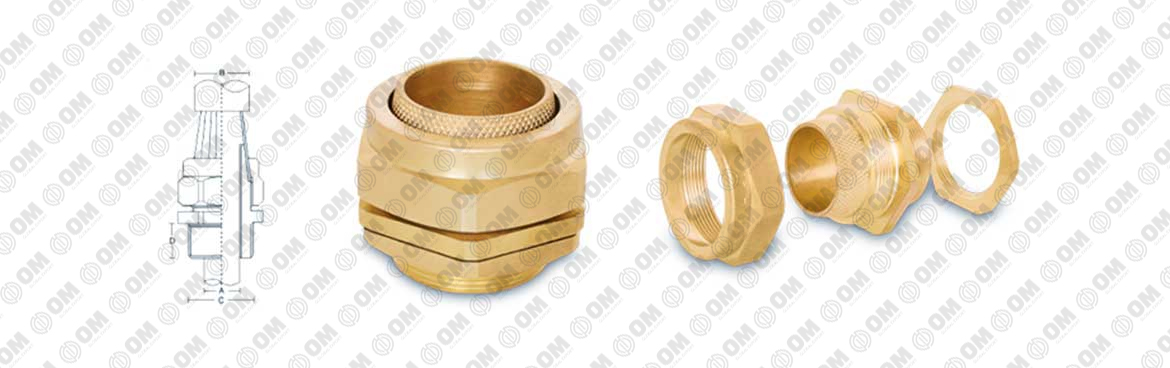

Also available in Kit Packaging and also as per the specification.

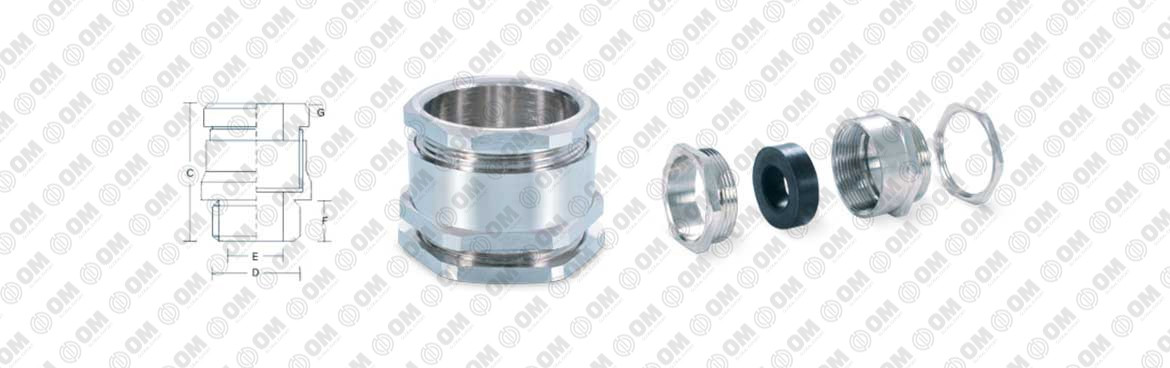

PG Cable Glands with IP-65 Protection
Size | PG 7 to PG 48 |
Standard | EN 50262 : 1999 |
Application | Outdoor or Indoor for use with all types of Unarmoured Cable |
Function | Provide Seal on Outer Sheath of the Unarmoured Cable |
Ingress Protection | IP65 |
Material | Brass BS 2874 CZ121 Pb3 |
Finish | Chrome Finish, Brass Finish, Nickel Finish or as specified |
Thread | PG and also available in Metric Threads on request |
Seals | Neoprene Material |
Operating Temp. | -200 C to +800 C |
Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Technical Data
Size | A | B | C | D | E | F | G |
PG-7 | 14.00 | 15.50 | 20.50 | PG-7 | 10.00 | 5.00 | 150 |
PG-9 | 18.00 | 20.00 | 23.50 | PG-9 | 12.50 | 6.00 | 150 |
PG-11 | 20.00 | 22.00 | 26.50 | PG-11 | 15.00 | 6.50 | 150 |
PG-13 | 23.00 | 25.00 | 27.00 | PG-13 | 16.75 | 7.10 | 150 |
PG-16 | 25.00 | 27.80 | 28.00 | PG-16 | 18.50 | 6.50 | 150 |
PG-21 | 31.00 | 34.00 | 31.00 | PG-21 | 24.10 | 7.10 | 150 |
PG-29 | 41.50 | 45.20 | 34.00 | PG-29 | 32.10 | 8.50 | 150 |
PG-36 | 51.00 | 56.50 | 40.00 | PG-36 | 43.00 | 10.00 | 150 |
PG-42 | 58.50 | 63.75 | 43.00 | PG-42 | 47.50 | 10.00 | 150 |
PG-48 | 64.00 | 70.50 | 47.00 | PG-48 | 52.25 | 10.00 | 150 |
Also available in Kit Packaging and also as per the specification.

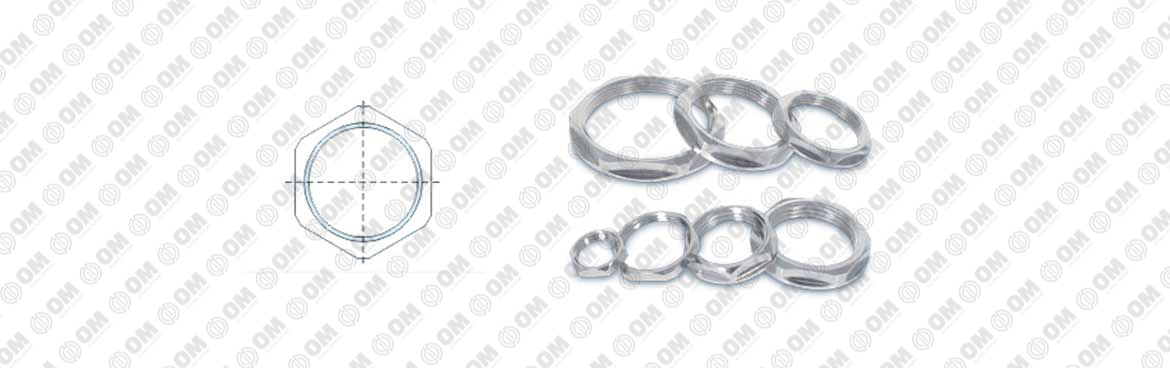

Brass Locknuts (PGm Metric & NPT)
Application: Brass | Brass Locknuts re traditional components used in fastening glands to the gland plate & as they are identical material to the gland, corrosion effects are minimal. |
Function: Standard | With ISO metric thread. To secure only brass cable glands to a gland plate |
EMC | With ISO metric thread with cutting edges to cut through paint layers or powder coatings, for optimum contact. |
Material | Brass BS 2874 CZ121 Pb3 Steel, Galvanized Aluminium Alloy (BS 1476) |
Options | |
Thread | ET NPT BSP BSPT PG |
Plating | Chrome (CP) Nickel (NP) Tin (TP) |

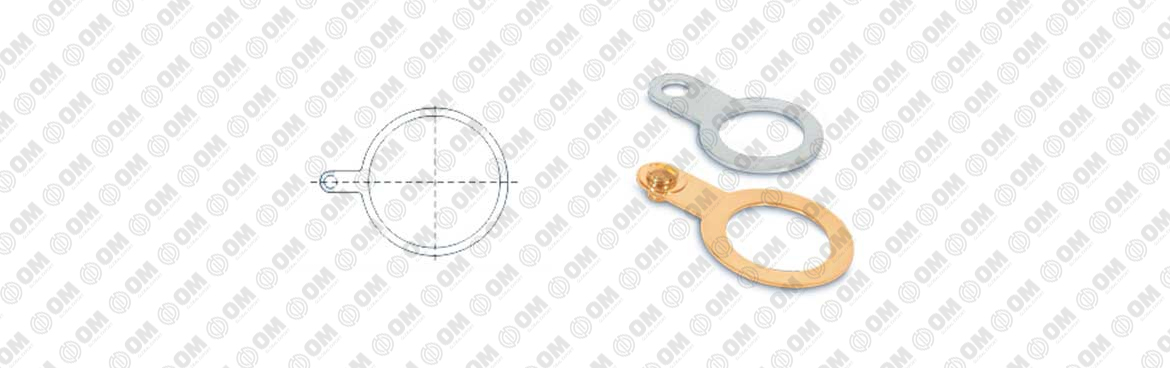

Brass Earth Tags
Application | Installed between the gland entry & equipment, provides an earth bond connection |
Function | Produces an earth bond connection for electrical continuity |
Material | Brass BS 2870 CZ123 lead |
Options | |
Type | With Brass Screws & Washers, Plain Hole |
Plating | Nickel (NP) Chrome (CP) Zinc (ZP) Tin (TP) |
Material | Brass |
Shape | Available in many shapes & thickness in all sizes, can be coated or plated to customers specification as mentioned. |

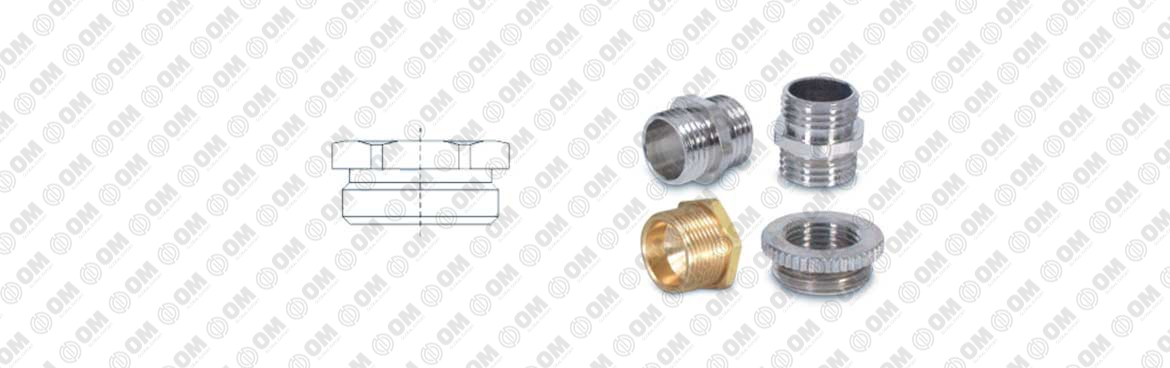

Hexagonal Reducers & Stop Plugs
Application | To maintain the IP rating between equipment & cable glands it may be necessary to fit an entry thread sealing washer at the gland entry interface. |
Material | Nitrite Rubber & EPDM |
Options Material | PVC (Black) Silicon (Orange) Polyamide or Nylon (White) Red Fibre. |
Seals available for both external of & internal use. |
